NGW-S型二、三級行星齒輪減速機高速級圓周速度（JB3723-84）

當n₁=1000r/min二級、三級減速器高速級圓周速度      （m/s）

傳動比 代號	NGW-S
	42.73	52.83	62.93	72.103	82.113	92.123	102	112	122
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18	5.68 4.96 4.39 3.94 3.58 3.40 2.77 2.45 2.19 2.19 2.19 2.19 2.19 1.88 1.67 1.41 1.30 1.30	6.70 5.85 5.18 4.65 4.18 3.66 3.29 2.87 2.58 2.58 2.58 2.58 2.58 1.93 1.72 1.51 1.39 1.39	7.51 6.55 5.75 5.21 4.71 4.13 3.66 3.19 2.87 2.87 2.87 2.87 2.87 2.23 1.96 1.67 1.56 1.56	8.71 7.60 6.70 6.02 5.49 4.81 4.29 3.70 3.35 3.35 3.35 3.35 3.35 2.61 2.30 1.98 1.83 1.83	9.79 8.54 7.53 6.75 6.12 5.39 4.81 4.18 3.76 3.76 3.76 3.76 3.76 2.97 2.61 2.25 2.07 2.07	11.05 9.64 8.53 7.64 6.96 6.07 5.44 4.71 4.24 4.24 4.24 4.24 4.24 3.35 2.93 2.53 2.30 2.30	9.84 8.84 8.01 7.01 6.28 5.44 4.91 4.91 4.91 4.91 4.91 4.02 3.54 3.03 2.80 2.80	11.25 10.10 9.21 8.06 7.22 6.28 5.60 5.60 5.60 5.60 5.60 4.60 4.03 3.45 3.19 3.19	12.72 11.41 10.36 9.10 8.11 7.06 6.33 6.33 6.33 6.33 6.33 5.01 4.42 3.76 6.45 3.45

NGW-S型二級行星齒輪減速機許用輸入功率（JB3723-84）

11.37

傳動比 代號	公稱 傳動比	機座號	4	5	6	7	8	9	10	11	12
		型號	NGW-S42	NGW-S52	NGW-S62	NGW-S72	NGW-S82	NGW-S92	NGW-S102	NGW-S112	NGW-S122
		n1(r/min)	二級減速器高速軸許用輸入功率P1P(kW)
1	11.2	600	17.79	24.31	35.9	47.7	66.55	99.16
		750	22.06	30.3	44.8	58.8	82.94	123.78
		1000	29.32	40.19	59.5	78.16	110.36	164.8
		1500	48.81	60.12	88.95	116.95	165	247
2	(12.5)	600	15.93	21.78	31.95	41.98	59.2	88.25
		750	19.76	27.15	39.87	52.3	73.8	110.17
		1000	26.27	36	52.96	69.58	98.22	146.69
		1500	39.26	53.86	79.16	104	146.88	219.9
3	14	600	14.23	19.38	28.4	37.36	52.7	78.54	111.69	153.43	225.7
		750	17.65	24.16	35.48	46.57	65.69	98	139.48	191.53	282
		1000	23.46	32	47.14	61.92	87.4	130.56	185.7	255.5	375.85
		1500	35.05	47.94	70.46	92.64	130.73	195.7	284.17	382.49	563.6
4	(16)	600	12.45	16.96	25.3	33.25	46.92	69.9	99.4	136.55	223.88
		750	15.44	21.1	31.59	41.45	58.46	87.26	124.13	170.46	250.99
		1000	20.32	28	41.95	55.1	77.8	116.19	165.27	227.1	334.5
		1500	30.67	41.95	62.7	82.45	116.34	174.17	247.8	340.46	501.64
5	18	600	11	15.06	22.52	29.6	41.75	62.2	88.46	121.53	178.79
		750	13.68	18.76	28.1	36.89	52	77.62	110.48	151.7	223.38
		1000	18.18	24.89	37.34	49.05	69.24	103.4	147.09	225.14	297.7
		1500	27.16	37.24	55.79	73.38	103.55	155	220.54	303	446.46
6	20	600	9.92	13.55	20	26.34	37.15	55.37	78.74	108.16	159.11
		750	12.31	16.88	25	32.83	46.31	69.12	98.32	135	198.8
		1000	16.36	22.41	33.23	43.66	61.62	92.03	130.91	179.9	264.96
		1500	24.44	33.52	49.66	65.3	92.16	137.96	195.7	269.69	397.34
7	22.4	600	8.83	12.06	17.825	23.44	33.07	49.27	70	96.26	141.6
		750	10.96	15	22.27	29.22	41.21	61.5	80.6	120.17	176.95
		1000	14.56	19.95	29.57	38.85	54.85	81.91	116.5	160.1	235.8
		1500	21.75	29.83	44.2	58.12	82	122.79	174.69	240	353.52
8	(25)	600	7.96	10.89	16	21.12	29.8	44.42	63.16	86.77	127.66
		750	9.89	13.58	20	26.34	37.15	55.45	78.89	108.33	159.5
		1000	13.13	18	26.66	35	49.43	73.84	105	144.33	212.57
		1500	19.63	26.93	39.84	52.39	73.94	110.68	157.48	216.36	318.79
9	28	600	7.09	9.69	14.31	18.8	26.53	39.53	56.22	77.23	113.62
		750	8.79	12.08	17.9	23.44	33.07	49.35	65.72	96.41	141.95
		1000	11.68	16.03	23.73	31.17	43.99	65.72	93.47	128.46	212.18
		1500	17.46	23.97	35.46	46.63	65.8	98.5	140.16	192.55	283.7
10	(31.5)	600	6.02	8.24	12.13	16.04	22.56	33.61	47.65	65.64	96.63
		750	7.47	10.24	15.13	19.99	28.14	41.96	59.8	81.99	120.73
		1000	9.9	13.62	20.11	26.62	37.49	55.86	79.65	109.2	160.89
		1500	14.81	20.32	30.1	39.82	56.1	83.75	119.35	163.69	241.29
11	35.5	600	5.04	6.9	10.16	13.46	18.87	28.16	40	54.98	80.96
		750	6.26	8.579	12.65	16.79	23.54	35.15	49.96	68.67	101.15
		1000	8.31	11.39	16.8	22.34	31.31	46.8	66.55	91.49	134.8
		1500	12.36	17.04	25.15	33.25	46.82	70.16	99.77	137.19	202.15
12	(40)	600	4.17	5.71	8.3	11.17	15.59	23.24	33.12	45.31	66.04
		750	5.16	7.1	10.32	13.92	19.41	29	41.34	56.59	82.51
		1000	6.85	9.4	13.7	18.53	25.83	38.65	55.09	75.42	109.95
		1500	10.23	14.06	20.52	27.71	38.65	57.87	82.55	113.04	164.84
13	45	600	3.38	4.62	6.69	9.13	12.62	18.86	26.8	36.75	53.21
		750	4.18	5.75	8.32	11.37	15.53	23.5	33.47	45.92	66.48
		1000	5.54	7.64	11.07	15.14	20.9	31.29	44.6	61.16	88.58
		1500	8.28	11.44	16.52	22.63	31.32	46.86	66.8	91.66	132.8
14	50	600	3.04	4.16	6.02	8.22	11.36	16.79	24.12	33.08	47.88
		750	3.77	5.17	7.49	10.23	13.98	21.16	30.13	41.31	59.82
		1000	4.99	6.9	9.97	13.62	18.81	28.16	40.14	55.05	79.72
		1500	7.45	10.29	14.86	20.13	28.19	41.82	60.13	82.5	119.54
15	56	600	2.9	3.91	5.67	8.14	10.78	15.96	22.16	30.6	42.64
		750	3.63	4.89	7.09	9.88	13.44	19.88	27.6	38.23	53.08
		1000	4.84	6.52	9.45	13.1	17.8	26.4	36.58	50.65	70.25
		1500	7.268	9.79	14.18	19.43	26.48	39.04	54.17	74.91	103.85
16	63	600	2.17	2.93	4.23	6.82	9.25	13.05	19.66	27.15	37.83
		750	2.72	3.66	5.29	8.53	11.56	16.32	24.49	33.92	47.09
		1000	3.62	4.88	7.06	15.42	21.76	32.45	44.94	62.33
		1500	5.44	7.33	10.59	17.06	23.13	32.64	48.06	66.46	92.13
17	71	600	1.86	2.51	3.63	5.84	8.32	11.19	17.44	24.09	33.57
		750	2.33	3.14	4.54	7.3	10.41	13.99	21.73	30.1	41.79
		1000	3.10	4.18	6.05	9.74	13.88	18.65	28.79	39.88	55.31
		1500	4.66	6.28	9.08	14.61	20.82	27.98	42.65	58.98	81.76
18	80	600	1.86	2.51	3.63	5.84	8.32	11.19	15.31	21.22	29.86
		750	2.33	3.14	4.54	7.3	10.41	13.99	19.07	26.43	36.94
		1000	3.10	4.18	6.05	9.74	13.88	18.65	25.29	35.03	48.94
		1500	4.66	6.28	9.08	14.61	20.88	37.98	37.51	51.89	72.48

   2.粗線框內(nèi)不帶括號之傳動比為優(yōu)選數(shù)系。

NGW-S型三級行星齒輪減速機許用輸入功率（JB3723-84）

NGW-S三級減速器許用輸入功率

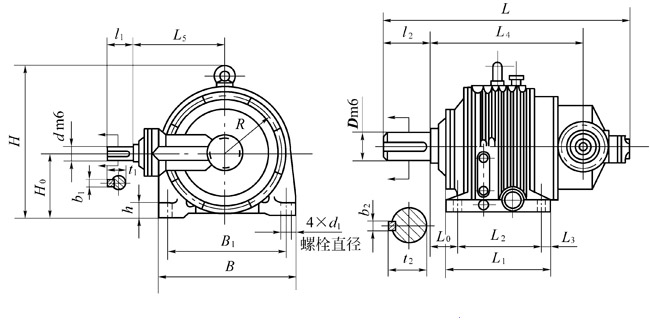

NGW-S型行星齒輪減速機外形及安裝尺寸（JB3723-84）
